A rear-end collision left this 2024 Nissan X-Trail with damage extending beyond the point of impact. Several right-hand-side panels had been knocked out of position. Sheen Towing collected the hybrid from the accident scene and transported it to Sheen Croydon.

The collision caused damage across the rear and right-hand side of the vehicle.
The hybrid battery was safely isolated before the repair process got underway.
Genuine Nissan parts were used before the vehicle underwent post-repair calibration.

Repair at a glance

Vehicle

2024 Nissan X-Trail Hybrid

Repair Type

Brand

Workshop

Insurance

Damage beyond the rear impact

The X-Trail was struck from behind before entering a roundabout. While the rear took the main impact, the force also knocked much of the vehicle’s right-hand side out of position. This meant the repair needed to address damage extending beyond the immediately visible rear panels.

The rear of the X-Trail sustained the main damage from the collision.
Much of the right-hand side was knocked out of its correct position.
The rear bumper was among the components requiring attention.
The back right-hand quarter required replacement as part of the repair.
The hybrid powertrain also meant specific battery safety procedures were required.

Assessing the full extent of the damage

The assessment confirmed that the repair needed to go beyond the rear impact area. With the right-hand-side panels knocked out of position and the X-Trail’s hybrid system to consider, the team planned the panel work alongside the battery safety procedures required before repairs could begin.

Rear and right-hand-side damage shaped the scope of the repair.
The hybrid battery needed to be safely disarmed before repair work commenced.
The rear bumper and back right-hand quarter were identified for repair or replacement.

Two Sheen technicians inspecting bodywork on a vehicle in the workshop.

How we repaired the Nissan X-Trail

With the repair scope established, the team worked through the X-Trail’s hybrid safety requirements, damaged panels, replacement parts and final calibration.

Isolating the hybrid battery

Before repair work began, the X-Trail’s hybrid battery was safely disarmed so the team could work on the accident-damaged vehicle safely.

Removing the damaged parts

The damaged components were removed to prepare the X-Trail for repair, including work around the rear bumper and back right-hand quarter.

Replacing the rear quarter

The damaged back-right-hand quarter was replaced, while the remaining affected panels were repositioned and reassembled as part of the repair.

Fitting genuine Nissan parts

Genuine Nissan parts were used to replace accident-damaged components, helping restore the vehicle with parts made specifically for the X-Trail.

Matching the paint finish

Computerised colour matching was used during refinishing to achieve a consistent finish between the repaired areas and the X-Trail’s existing paintwork.

Rearming and recalibrating

After repairs, the hybrid battery was rearmed, and ADAS calibration was completed before the X-Trail was returned to pre-accident condition.

Bringing the X-Trail back together

What arrived with rear damage and right-hand panels knocked out of position left with its bodywork restored. The repair combined panel work, genuine Nissan parts, paint matching and the required hybrid and ADAS procedures.

The rear bumper and back right-hand quarter were restored following the impact.
Genuine Nissan parts were used to replace damaged components where required.
ADAS calibration and hybrid battery rearming formed part of the completed repair.

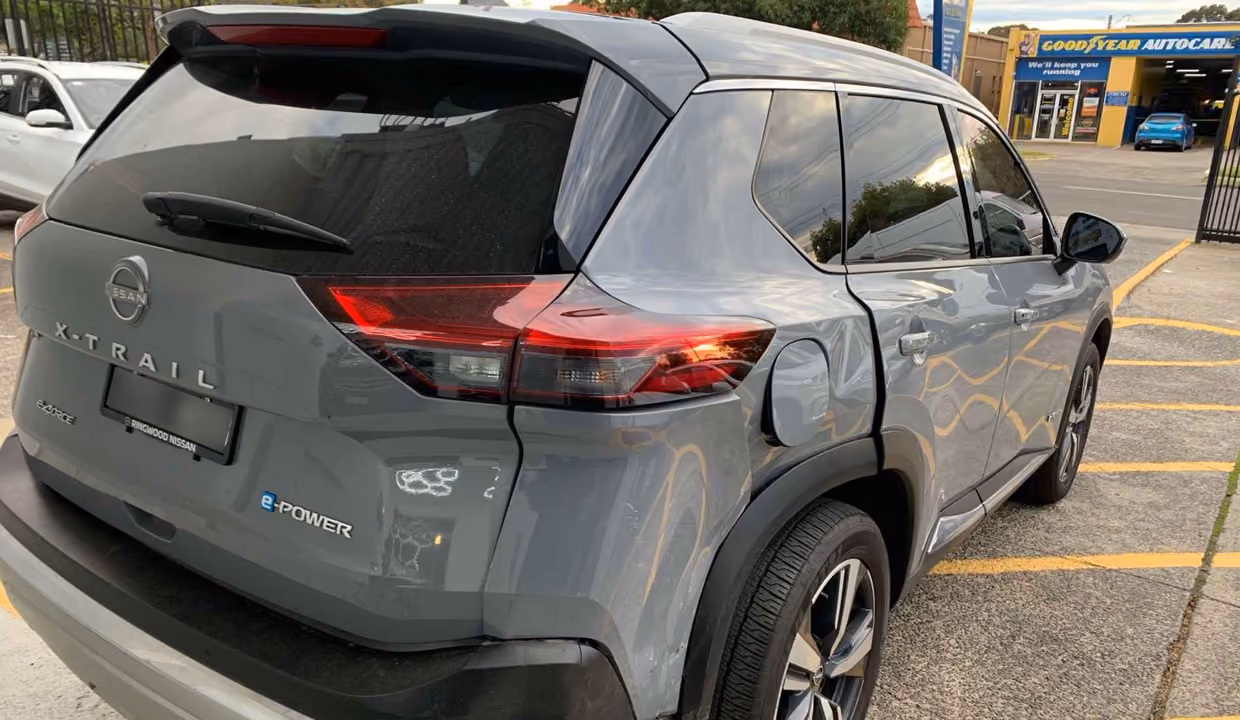

Before repair photo of a grey Nissan X-Trail showing damage to the rear side.

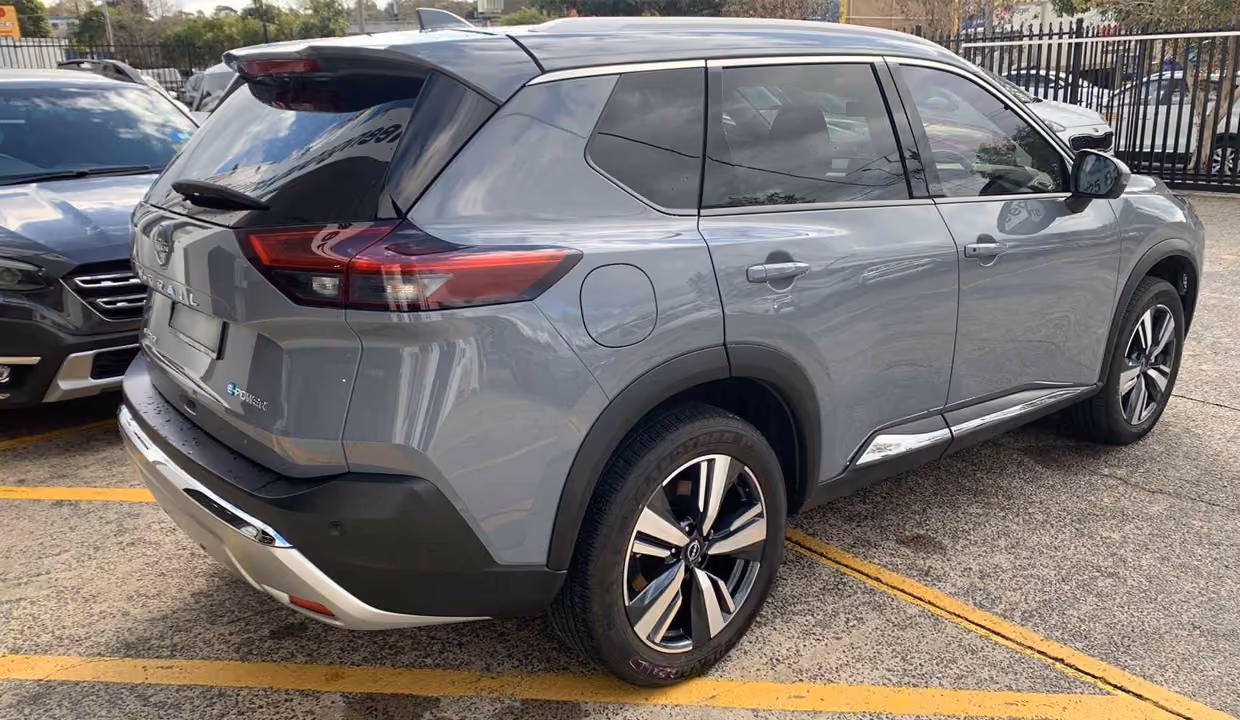

After repair photo of a grey Nissan X-Trail with the rear side restored.

A word from Sheen

At Sheen, we know that modern smash repairs involve much more than just fixing panels. The sheer complexity of this X-Trail repair required our expert technicians to carefully integrate genuine Nissan parts, computerised paint matching, and strict hybrid safety protocols. We pride ourselves on having the exact expertise needed to handle these advanced technical requirements, including the critical ADAS calibration, so we can get our customers safely back on the road.

James Black

Operations Manager

Parts, paint and hybrid technology

Repairing this X-Trail involved more than panel work. The job brought together genuine Nissan replacement parts, computerised paint matching and hybrid safety procedures, followed by ADAS calibration as the vehicle was prepared to return to the road.
